4K30 HDMI Over IP Transceiver
with
Control & KVM
The AVNX-4K-25-TR is a flexible 4K30 AV over IP transceiver that functions as both
encoder and decoder. Designed for next-gen AV control, it supports video, audio, USB
KVM, RS232, RS485, I/O, and relay interfaces. With transmission up to 150m over CAT6
or 2km over fiber, it’s ideal for command centers, smart campuses, and control rooms.

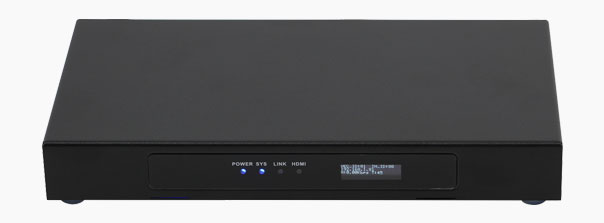

The unit features PoE/DC power, front-panel LCD for real-time diagnostics, and
a serverless architecture for maximum system reliability
- 4K30 AV over IP transceiver with encoder/decoder in one
- No central server or controller required
- Supports resolution scaling and seamless switching
- Video wall support with up to 16 windows per screen
- USB KVM functionality for remote workstation control
- Real-time input/output preview via software
- RS232, RS485, Relay, and I/O ports for external control
- Dual 3.5mm audio I/O with embedding & de-embedding
- On-screen display and scrolling text overlays
- Flexible deployment: 150m over CAT6, 2km via fiber
- Powered via PoE or DC input
- Front LCD panel shows IP, ID, and status
- Customizable control via Windows software
| Specification | Details |
|---|---|
|
Video Input |
1 x HDMI with HDMI loop output |
|
Video Output |
1 x HDMI
|
|
Input Resolution |
Up to 3840 x 2160 @ 30Hz |
|
Output Resolution |
Up to 3840 x 2160 @ 30Hz
|
|
Audio Input |
1 x 3.5mm Line In |
|
Audio Output |
1 x 3.5mm Line Out |
|
Latency |
80ms-120ms |
|

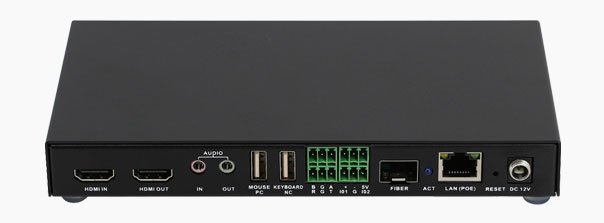

Control Ports |
RS232, Relay, RS-485, IO |
|
IP Ports |
1 x LAN (RJ45), 1 x Fiber |
|
Poe |
Support standard POE function |
|
Usb |
2 x USB-A, Female |
|
Power Consumption |
<10W |
|
Product Dimension |
193mm x 100.5mm x 25mm |
|
Weight |
525 g |
