Enterprise video wall controller for mission-critical control rooms.

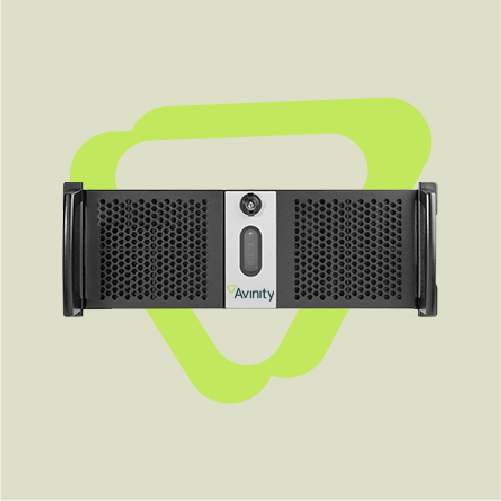

AVNWall-4000 Series
AVNWall-4000 Series is a video wall controller that brings computer applications, live video, IP streams, web dashboards, and remote desktops into one centralized visualization environment. Built on a 4U rack-mount platform with Intel Core i7/Xeon processing, RAID-1 storage, and redundant power, it drives up to 12 4K UHD displays with dynamic layouts and scenario management for control rooms and NOCs.
- Centralized Multi-Display Visualization & Wall Management – Wall management software lets multiple displays operate individually or as a unified canvas, with layouts, sources, and arrangements controlled from one centralized interface.
- Multi-Source Integration & Flexible Content Management – Bring IP video streams, web pages, remote desktops, images, videos, and supported hardware inputs into a common visualization workspace.
- High-Resolution Multi-Display Graphics Processing – Professional multi-output graphics configurations drive up to 12 UHD or 64 Full HD displays, with the processing power for detailed dashboards, applications, and video feeds.
- Dynamic Layouts, Multi-Window & Scenario Management – Position, resize, and arrange multiple sources across the wall, and switch between predefined scenarios for routine monitoring, emergency response, and specialized workflows.
- Network-Based Visualization & Remote Source Access – Incorporate IP streams, web-based applications, and remote desktops alongside local sources for consolidated, centrally managed visualization.
- Professional Rack-Mount Hardware with Redundant Architecture – 4U 19-inch rack-mount platform with RAID-1 storage and redundant power for demanding mission-critical environments.
- Scalable Architecture for Mission-Critical Applications – Configure inputs, outputs, displays, graphics, and source types per project — suited for control rooms, NOCs, command centers, traffic, telecom, and transportation.
| Specification | Details |
|---|---|
| Chassis | 4U, 19-inch Rack Mount |
| Operating System | Windows 10 64-bit Professional |
| Processor | Intel® Core™ i7 Octa-Core / Intel® Xeon® |
| Processor Frequency | Up to 3.3 GHz / 3.6 GHz Turbo |
| System RAM | 8 GB / 16 GB / 32 GB / 64 GB |
| Storage Architecture | RAID-1 Redundant Storage |
| HDD | 2 × 1 TB HDD |
| SSD | 2 × 480 GB SSD |
| Graphics Cards | Up to 3 x Professional Multi-Output Graphics Cards |
| UHD Displays | Up to 12 × 4K UHD Displays |
| Full HD Displays | Up to 64 x Full HD Displays |
| Digital Inputs | Up to 64 Digital Input Channels |
| Video Input Interfaces | DVI / HDMI / DisplayPort Supported |
| SDI Inputs | Up to 32 SDI Input Channels |
| Analog Video Inputs | Up to 32 Analog Video Input Channels |
| IP Video | RTSP Live IP Video Streams |
| Web Content | Web Pages & Browser-Based Applications |
| Remote Desktop Sources | VNC-Based Remote Sources |
| Local Content | Images, Videos, Applications & Hardware Sources |
| Video Window Processing | Simultaneous Multi-Source Display |
| Window Management | Flexible Positioning & Resizing |
| Layout Management | Customized Multi-Source Layouts |
| Scenario Management | Predefined Layouts & Operating Scenarios |
| Source Preview | Supported |
| Wall Management | Centralized Configuration & Control |
| User Authentication | Supported |
| Role Management | Role-Based Access Control |
| Network Interface | 2 × LAN |
| Power Supply | 800W Redundant Power Supply |
| Power Input Voltage | 100-240 V AC |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | Up to 80%, Non-Condensing |
| Audio Noise Level | ≤ 48 dBA @1m |
| Compliance Certifications | CB, CE, RoHS & BIS |
