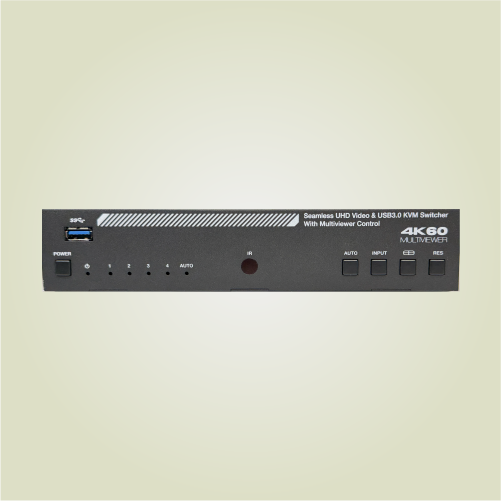

Professional 4K Multiview switcher with seamless KVM control.
AVNWall-41-MVK
It is a professional 4×1 HDMI 2.0b seamless switcher with multiview processing and USB 3.0 KVM for control rooms and command centers. Supporting 18Gbps with uncompressed 4K60 4:4:4 video, it displays up to four sources on a single screen with zero black-screen switching. Its USB 3.1 Gen 1 KVM controls four computers with one keyboard and mouse.
- 4K60 4:4:4 Video Processing – Supports up to 3840×2160@60Hz with full 4:4:4 chroma sampling, delivering pixel-perfect clarity, sharp text rendering, and accurate color reproduction.
- Seamless Switching Technology – True seamless switching in single-view mode with zero black screen or signal interruption for uninterrupted visual monitoring.
- 8-Mode Multiview Engine – Eight configurable display layouts including Single, PIP, PBP, Triple, and Quad modes, visualizing up to four sources with flexible positioning and scaling.
- Integrated USB 3.0 KVM & Hub (5Gbps) – Control up to four host systems using a single keyboard, mouse, and shared peripherals with 5Gbps USB 3.1 Gen 1 bandwidth.
- Advanced Audio De-Embedding – Extract HDMI audio to analog L/R and optical SPDIF outputs, with support for multi-channel formats up to 7.1 surround sound.
- Flexible Control Options – Front panel buttons, IR remote, RS-232 serial, OSD, keyboard and mouse hotkeys, and PC software for system integration.
- Auto Input Detection & Switching – Automatically detects active HDMI inputs and switches to available sources in auto mode for dynamic environments.
- OSD Configuration Interface – Intuitive on-screen display for input selection, multiview layouts, resolution settings, and audio routing — no external tools needed.
- Cross-Platform Compatibility – Works with Windows, macOS, and Linux with plug-and-play operation and no driver installation.
| Specification | Details |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Bandwidth | 18Gbps |
| Max Resolution | 4096×2160@60Hz / 3840×2160@60Hz (4:4:4) |
| Color Depth | 8-bit / 10-bit / 12-bit |
| Color Space | RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio | PCM 2.0/5.1/7.1CH, Dolby Digital / DTS / DTS-HD |
| Analog Output | PCM 2.0 (RCA L/R) |
| Optical Output | SPDIF (Dolby / DTS 5.1) |
| Audio Features | De-embedding, Independent Switching, Volume Control (0-100) |
| Display Modes | 8 Modes (Single, PIP, PBP×2, Triplex2, Quad×2) |
| USB Standard | USB 3.1 Gen 1 |
| USB Bandwidth | 5Gbps |
| Host Ports | 4 × USB Type-B |
| Device Ports | 3 × USB 3.0 Type-A, 2 × USB 2.0 Type-A |
| HDMI Inputs | 4 × HDMI Type-A |
| HDMI Output | 1 × HDMI Type-A |
| Audio Outputs | 1 x RCA L/R, 1 × Optical SPDIF |
| Control Ports | RS-232 (3-pin Phoenix), IR Input (3.5mm, 38KHz) |
| RS-232 Baud Rate | 115200 (default) |
| Serial Parameters | 8 Data bits, 1 Stop bit, No parity |
| Control Methods | Front Panel, IR Remote, RS-232, OSD, Software, Hotkeys |
| EDID Modes | 19 Presets + 1 User-defined |
| EDID Supported Formats | 4K60 / 4K30 / 1080p, Stereo / 5.1 / 7.1 |
| Input Power | AC 100-240V, 50/60Hz |
| Output Power | DC 12V / 2.5A |
| Power Consumption | 18.5W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 20%-90% RH (non-condensing) |
| ESD Protection | +8kV (Air), +4kV (Contact) |
| Dimensions & Weight | 220 × 100 × 44 mm & ~443g |
