Pure hardware video wall controller for mission-critical visualization.
AVNWall-8000 Series
AVNWall-8000 Series is a professional pure-hardware LCD and LED video wall controller for command centers, SOCs, NOCs, and broadcast facilities. Built on FPGA + DSP + ARM architecture with no OS dependency, it delivers true seamless switching with zero black frames, latency, tearing, or frame loss. Modular hot-swappable chassis scale to 144×72 with 4K processing, M×N splicing, and centralized control.
- Pure Hardware FPGA + DSP Processing Architecture – No operating system dependency eliminates crashes, malware, and software instability while ensuring ultra-fast, deterministic 24×7 processing.
- True Seamless Zero-Latency Switching – Dedicated hardware bus switching achieves zero black frames, tearing, latency, or frame loss for uninterrupted visual continuity.
- Modular Hot-Swappable Chassis Design – 2U, 3U, 6U, 12U, and 24U chassis with hot-swappable input, output, and control boards for easy maintenance and expansion without interrupting operation.
- Advanced Multi-Window Video Wall Processing – Roaming, scaling, PIP, overlay, and cross-screen display with up to 8 independent windows per screen and pixel-accurate FPGA scaling.
- Flexible M×N Video Wall Splicing – Freely splice any input signal across LCD or LED panels with precise synchronization and non-stretched scaling, plus optional 16K canvas capability.
- 4K End-to-End Signal Processing – Full 4K acquisition, processing, and output at 60Hz or 30Hz, with backward compatibility for Full HD and lower-resolution sources.
- Multi-Format Signal & IP Camera Support – HDMI, DVI, VGA, SDI, BNC, DP, miniDP, YPbPr, CVBS, and IP streams, with optional ONVIF IP decoding cards supporting 36 split windows per card.
- Wireless Projection & KVM Integration – Optional wireless projection from Windows, Android, and iOS devices, plus KVM functionality with mouse roaming and expandable KVM boards.
- Intelligent Scene Management & Centralized Control – Up to 128 scene presets with scheduled switching, controlled via Web GUI, IP, RS-232, tablet, mobile app, or third-party SDK.
| Specification | Details |
|---|---|
| SKU | AVNWal-8000 Series |
| Product Type | Pure Hardware LCD & LED Video Wall Controller |

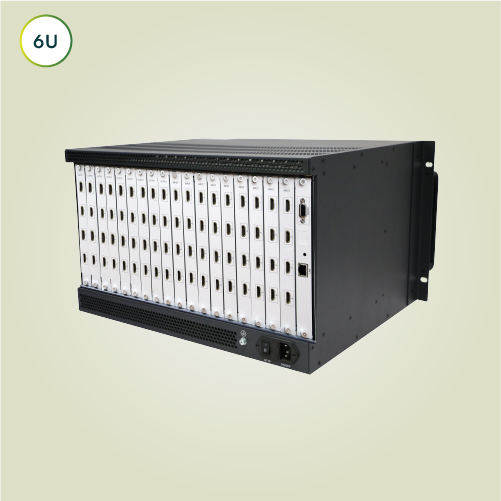

| Chassis Options | 2U / 3U / 6U / 12U / 24U |
| Max I/O Capacity | Up to 144 × 72 |
| Board Structure | Modular Hot-Swappable |
| System Type | Pure Hardware Architecture (No OS) |
| Processing Engine | FPGA + DSP + ARM |
| Startup Time | < 5 Seconds |
| Stability | Virus-Free, Crash-Free 24 × 7 Operation |
| Switching Technology | True Seamless Hardware Switching |
| Window Layers | Up to 8 Layers per Screen |
| Split Windows | Up to 36 Windows per Screen |
| Video Functions | PIP, Overlay, Roaming, Scaling |
| Scaling Engine | FPGA Interpolation & Multi-Phase Filtering |
| Canvas Support | Up to 16K Resolution (Optional) |
| Video Input Signals | HDMI, DVI, VGA, SDI, BNC |
| Video Input Optional Interfaces | DP, miniDP, YPbPr, CVBS |
| Max Input Resolution | 4K@60Hz / 4K@30Hz |
| Video Output Signals | HDMI, DVI |
| Video Output Optional Interfaces | DP, miniDP, YPbPr, CVBS |
| Max Output Resolution | 4K@30Hz |
| IP Decoding Protocols | ONVIF, GB28181 |
| Camera Compatibility | Hikvision, Dahua, Uniview, Huawei |
| Max Split Windows | 36 per IP Card |
| Max Decoding Channels | 72 D1 Streams per Card |
| Decoding Capability | 2×4K / 18×1080P / 32×720P / 72×D1 |
| Wireless Projection Devices | Windows, Android, iOS |
| Projection Mode | One-Click Wireless Projection |
| Audio Interfaces | HDMI Embedded Audio, 3.5mm Analog |
| KVM Support | Optional |
| Mouse Roaming | Supported |
| Text Overlay | Dynamic & Static Caption Support |
| Welcome Screen | Customizable |
| Control Methods | Web GUI, IP, RS-232, Tablet, Mobile App |
| SDK Integration | Supported |
| LAN Interface | TCP/IP RJ45 |
| MTBF | ≥ 50,000 Hours |
| Usage Environment | Command Centers, SOCs, NOCs |
| Operating Temperature | -15°C to +40°C |
| Operating Humidity | Up to 75% RH |
| Power Input | AC 100-220V 50/60Hz |
| Redundant Power | Optional |
