4K wireless BYOD presentation platform for secure multi-user collaboration.

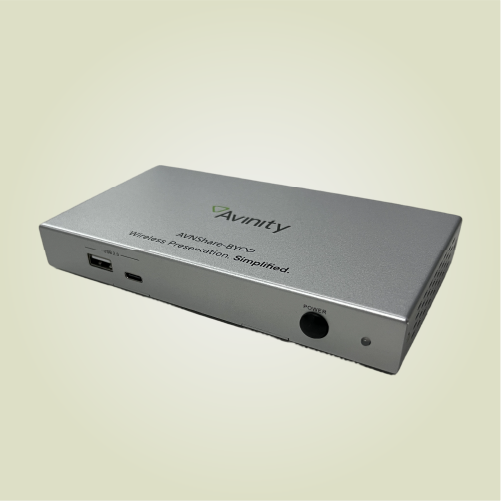

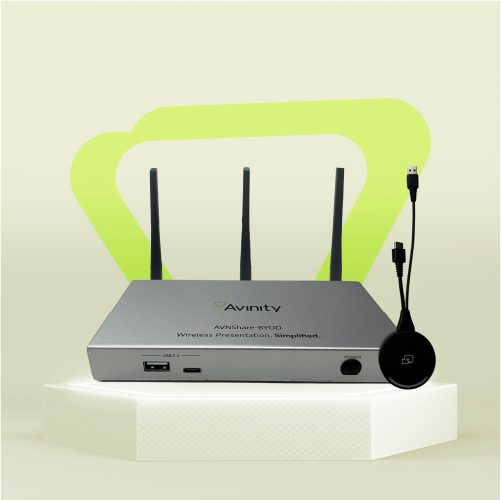

AVNShare-BYOD
AVNShare-BYOD is a professional wireless presentation and collaboration platform for modern meeting rooms, classrooms, and corporate spaces. Supporting native AirPlay, Miracast, and Chromecast, it enables wire-free 4K content sharing from any device. With up to 16 connected devices, dual active windows, touchback control, whiteboard annotation, and AES encryption, it’s a secure, scalable BYOD ecosystem for professional AV environments.
- Native Wireless Presentation Protocol Support – Supports Apple AirPlay, Miracast, and Google Chromecast for direct content sharing from Windows, macOS, Android, and iOS devices without external software or hardware.
- 4K Ultra HD Wireless Presentation Engine – Wireless presentation up to 4K resolution with HDMI 2.0 output and hardware-based video processing for smooth, sharp, low-latency performance.
- Multi-User Collaboration & Split-Screen Display – Connect up to 16 devices with dual active presentation windows and up to 12 thumbnail preview streams displayed simultaneously.

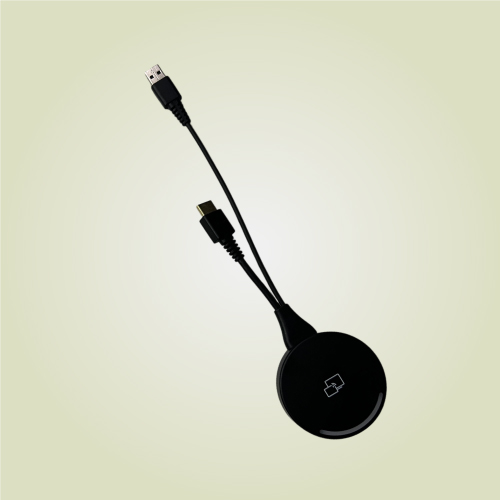

- Plug-and-Play Wireless Presentation Dongles – Optional HDMI and USB-C dongles enable one-click wireless sharing without joining the corporate network or installing applications.
- Wireless Touchback & Interactive Collaboration – Control connected laptops directly from touchscreen displays, with whiteboard and annotation tools for real-time interaction.
- Enterprise Wireless Security Architecture – AES WPA/WPA2-PSK encryption protects wireless transmission, with moderator preview to control presentation visibility.
- High-Performance Dual-Band Wireless Connectivity – Dual-band 2.4GHz and 5GHz Wi-Fi with 802.11 a/b/g/n/ac support, throughput up to 1200Mbps, and latency as low as 20ms.
- Centralized Management & Flexible Control – Control and monitor devices via Web GUI and Telnet, with customizable home screen UI and OSD preview moderation.

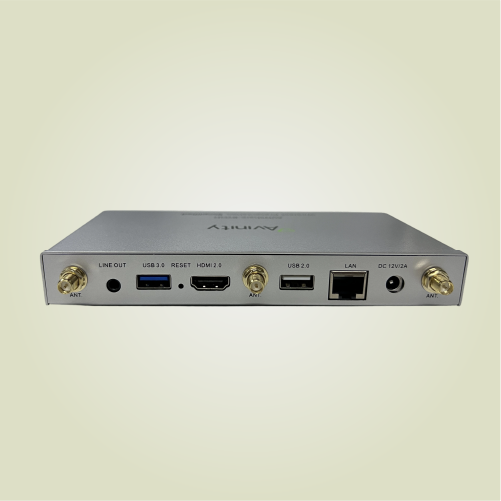

| Specification | Details |
|---|---|
| Product Type | Wireless BYOD Presentation System |
| HDMI Output | 1 x HDMI 19-Pin Female Connector |
| HDMI Standard | HDMI 1.4 / HDMI 2.0 |
| HDCP Compliance | HDCP 1.4 / HDCP 2.2 |
| Maximum Resolution | 3840×2160@60Hz |
| Supported Resolutions | 3840×2160@30Hz, 1920×1080@60Hz, 1280×720@60Hz |
| AirPlay Performance | 1080P @ ≤60Hz |
| AVNShare App | 4K @ ≤30Hz |
| HDMI Dongle Input | 1080P @ ≤30Hz |
| USB-C Dongle Input | 1080P @ ≤30Hz |
| Supported Protocols | AirPlay, Miracast, Chromecast |
| Wireless Apps | Windows & macOS AVNShare App |
| Simultaneous Connections | Up to 16 Devices |
| Active Windows | 2 Main Windows |
| Thumbnail Windows | Up to 12 Preview Windows |
| Whiteboard | Supported |
| Annotation | Supported |
| Touchback | Interactive Touchscreen Support |
| OSD Preview | Supported |
| Audio Input | AirPlay, Miracast, Chromecast, WMH, WMC |
| Audio Output | HDMI, 3.5mm Analog Jack, USB Speaker |
| Analog Output | 1 x 3.5mm Stereo Audio Jack |
| USB 3.0 | 1x Type-A |
| USB 2.0 | 2 × Type-A |
| USB Type-C | 1x Type-C |
| LAN Interface | RJ45 100Mbps Ethernet |
| Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac |
| Wi-Fi Frequency | 2.4GHz & 5GHz |
| Wi-Fi Throughput | Up to 1200Mbps |
| Wi-Fi Antenna | MIMO 2×2 / MIMO 1×1 |
| Wi-Fi Encryption | AES WPA PSK / WPA2 PSK |
| Video Frame Rate | 20-60 FPS |
| Latency | <100ms (Minimum 20ms) |
| Control Interface | Web GUI, Telnet |
| Dimensions | 165mm × 100mm × 23mm |
| Dimensions with Antenna | 165mm × 130mm × 95mm |
| Weight | 930g |
| Operating Temperature | -20°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 20%-85% RH (Non-Condensing) |
| DC Input | 12V / 2A |
| Power Consumption | 20W Max |
| Adapter Input | AC 100-240V 50/60Hz |
| Deployment Type | Tabletop Installation |
| Central Management | Supported |
| Customizable Home Screen | Supported |
