Ultra-compact wireless HDMI dongle for instant screen mirroring.
AVNShare-Mini
It is an ultra-compact, plug-and-play wireless screen casting receiver designed for effortless presentations and on-the-go display needs. As small as a USB flash drive,
it enables instant screen mirroring from smartphones, tablets, and laptops — without Wi-Fi, app installations, or drivers. Supporting AirPlay Direct and Miracast Direct,
it offers HDMI output for TVs and monitors or USB display mirroring on Windows PCs, with seamless one-button mode switching, AES encryption, and optional PIN protection. Ideal for small meeting rooms, mobile professionals, and educators.
- Dual Presentation Modes – Share content via direct wireless casting or plug-and-share dongle connectivity.
- App-Free Screen Sharing – Cast instantly using AirPlay or Miracast without installing apps or drivers.
- Ultra-Compact Design – Palm-sized receiver for easy installation and portable presentation setups.
- Cross-Platform Compatibility – Supports Windows, macOS, iOS, and Android devices.
- HD Wireless Display – Smooth 1080p screen sharing for presentations and media content.
- Multi-User Support – Hotspot mode allows up to four users to connect and share content.
- Secure Wireless Connectivity – Built-in AES encryption and WPA2 security protect shared data.
- Plug-and-Play Setup – Connect to the display and start sharing within seconds.
| Specification | Details |
|---|---|
| Connection Ports | USB 2.0, HDMI 1.4 |
| Output Modes | HDMI to monitor, USB to Windows system |
| Max Users | 4 (In Hotspot Mode) |
| Resolution | 1080p @ 60Hz |
| Latency | 50ms ~ 150ms |
| Display Mode | Single / Extended Desktop |
| Operating Modes | P2P Mode, Hotspot Mode |
| Wi-Fi Band | 5GHz |
| Security | AES Encryption, WPA2-PSK |
| Transmission Range | Up to 8 meters (line of sight) |
| Power Input | 5V, 500mA (USB Powered) |
| Colour | Black |
| Power Consumption | 2.5W |

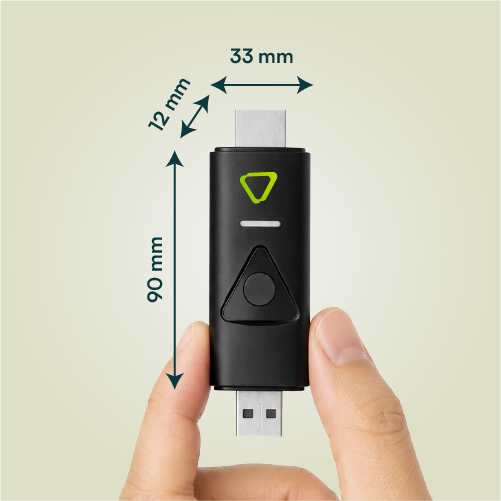

| Product Size | 90mm × 33mm × 12mm |

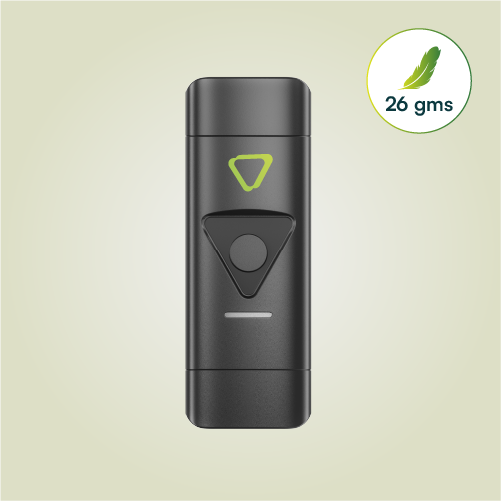

| Weight | 26g |
| Operating Temp | 0°C to +40°C |
| Storage Temp | -10°C to +60°C |
| LED Indicator | Blue (Solid = Active, Flashing = Switching) |
Need more than
Content Sharing?
Explore our Wireless
VC Solutions.
Upgrade from simple screen sharing to complete wireless video conferencing. Avinity’s BYOM solutions let you connect your laptop to the room’s AV peripherals for seamless meetings from any platform.
