All-in-one wireless BYOM hub for seamless room conferencing.
AVNShare-BYOM

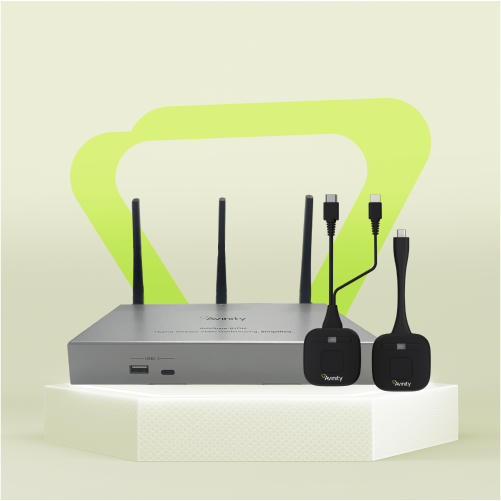

AVNShare-BYOM is Avinity’s all-in-one wireless Bring Your Own Meeting solution for meeting rooms, huddle spaces, classrooms, and hybrid environments. It combines wireless presentation, USB peripheral sharing, and enterprise-grade room integration, letting users instantly access the room display, camera, microphone, and speakers. Supporting Teams, Zoom, Webex, and Google Meet without drivers, it delivers 4K conferencing with multi-view collaboration and PoE-powered deployment.
- Complete Wireless BYOM Experience – Wirelessly connect your laptop to the room’s display, camera, microphone, and speaker through a single connection — via HDMI/USB-C transmitters, AirPlay, Miracast, Chromecast, or the AVNShare app.
- Ultra-HD 4K Presentation Output – Dedicated HDMI output supporting resolutions up to 4K@60Hz for crystal-clear presentation of documents, spreadsheets, videos, and collaborative content.
- Multi-View Collaboration – Display up to four presentation sources simultaneously on a single screen with flexible layouts for side-by-side comparison.
- Reverse Touch Control – Control your laptop directly from an interactive touchscreen display — touch, drag, scroll, annotate, and interact naturally without returning to the laptop.
- Moderator Management – Preview sources before they appear on screen, approve or reject sharing requests, and manage multi-view layouts.
- Whiteboard & Annotation Tools – Integrated whiteboarding and annotation enable brainstorming, highlighting, and real-time visual collaboration.
- Dual LAN Architecture with PoE – Dual Ethernet ports deliver power and data over a single cable while securely separating guest and corporate traffic.
- Enterprise Control & Integration – Web GUI, Telnet, and RS-232 control for seamless integration with room automation and management platforms.
| Specification | Details |
|---|---|
| HDMI Output | 1 x HDMI 19-pin Female, HDMI 1.4, HDCP 1.4 |
| Maximum Resolution | 3840×2160@60Hz |
| Supported Resolutions | 3840 × 2160 @ 60Hz, 3840 × 2160 @ 30Hz, 1920 × 1080 @ 60Hz |
| AirPlay Support | Yes (up to 1080p @ 60Hz) |
| Miracast & Chromecast | Yes (up to 1080p @ 60Hz) |
| AVNShare App Support | Windows & macOS (up to 1080p @ 60Hz) |

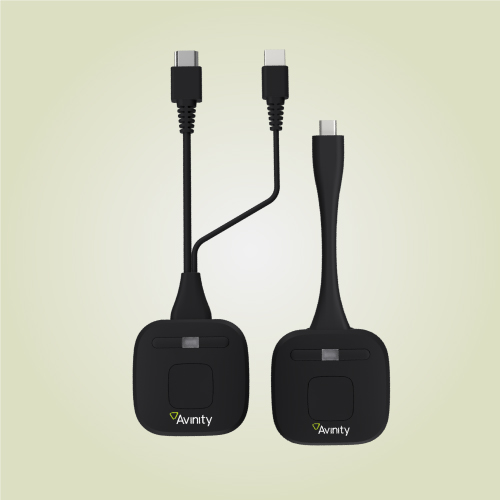

| HDMI Transmitter Interface | HDMI Type-A |
| HDMI Transmitter Max Resolution | 4K @ 30Hz |
| HDMI Transmitter Wireless Band | 5 GHz Wi-Fi |
| HDMI Transmitter Power | HDMI Bus-Powered |
| HDMI Transmitter Controls | 3 Buttons (Presentation, UVC Peripheral Access, App Launch) |
| USB-C Transmitter Interface | USB-C (DisplayPort Alt Mode) |
| USB-C Transmitter Max Resolution | 4K @ 30Hz |
| USB-C Transmitter Wireless Band | 5 GHz Wi-Fi |
| USB-C Transmitter Power | USB-C Bus-Powered |
| USB-C Transmitter Controls | 3 Buttons (Presentation, UVC Peripheral Access, App Launch) |

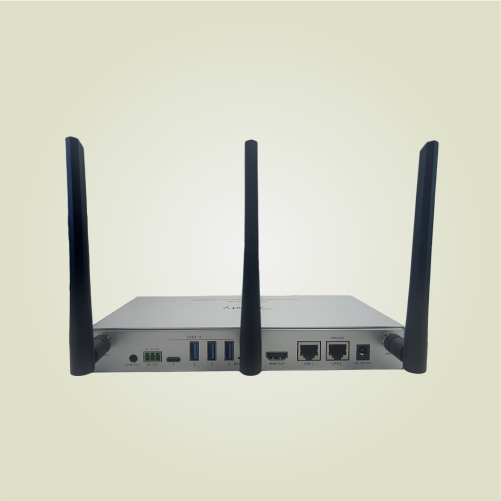

| USB 3.0 Type-A Ports | 3 × USB 3.0 |
| USB 2.0 Type-A Ports | 1 × USB 2.0 |
| USB Type-C (USB 3.0) | 1 × USB-C |
| USB Type-C (USB 2.0) | 1 × USB-C |
| UVC Camera Support | 1 x USB Camera, up to 1080p @ 30fps (MJPG) |
| Supported Peripherals | USB Cameras, Microphones, Speakers, HID |
| Analog Audio Output | 1 × 3.5 mm Stereo Line-Out |
| HDMI Audio | Embedded Audio Supported |
| Wireless USB Audio | Supported |
| LAN 1 | RJ45 Gigabit Ethernet (10/100/1000 Mbps), PoE |
| LAN 2 | RJ45 Ethernet (10/100 Mbps) |
| Wi-Fi | Dual-Band 2.4 GHz / 5 GHz |
| Network Modes | Guest & Corporate Network Separation |
| Latency | < 100 ms (Typical Minimum: 20 ms) |
| Video Frame Rate | 20-60 FPS |
| Maximum Participants | Up to 16 Simultaneous Connections |
| Multi-View | Up to 4 Simultaneous Sources |
| Reverse Touch Control | Control Laptop from Interactive Display |
| Whiteboard | Built-In Interactive Whiteboard |
| Annotation | Real-Time On-Screen Annotation |
| Moderator Mode | Preview Sources, Approve/Deny Sharing Requests, Manage Multi-View Layouts |
| Web GUI | Browser-Based Configuration & Management |
| Telnet | Remote CLI Control via TCP/IP |
| RS-232 | Bidirectional Serial Control |
| Wireless Security | WPA2-PSK |
| DC Input | 12V DC Power Adapter Included |
| PoE Support | IEEE 802.3af/at PoE |
| Power Delivery | Single Cable Power & Data |
| Form Factor | Compact Tabletop Receiver |
| Mounting Options | Tabletop or Furniture Surface Installation |
| Enclosure | Compact Professional AV Enclosure |
