Multi-source USB & HDMI switcher for low-latency video mixing.

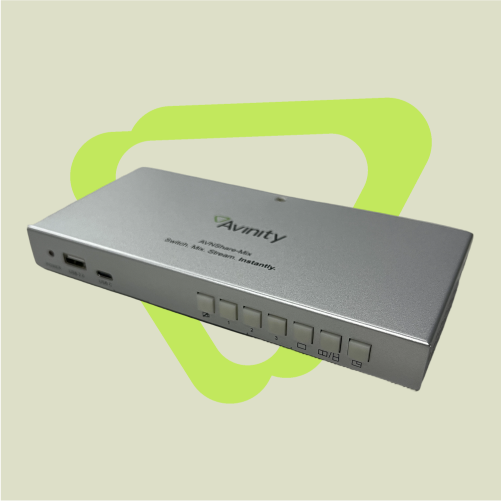

AVNShare-Mix
It is a professional USB and HDMI switcher and video mixer for collaboration spaces, hybrid classrooms, webinar studios, and live streaming. It enables seamless switching and real-time mixing of USB cameras and HDMI inputs into Picture-in-Picture and side-by-side layouts. With driver-free UVC/UAC output, HDMI 2.0 monitoring, audio mixing, and Web GUI/RS-232 control, it works with Teams, Zoom, Meet, and OBS.
- Multi-Source Video Switching Engine – Seamlessly switch between three independent video inputs — USB 3.0 cameras, USB 2.0 cameras, and HDMI video devices — with minimal latency.
- Real-Time Video Mixing & Layout Processing – Combine multiple video sources into customizable Picture-in-Picture, side-by-side, and large-small display modes directly through the Web GUI.
- USB-C UVC/UAC Streaming Output – Connect to PCs, conferencing systems, and streaming software as a standard USB camera and audio device — driver-free compatibility with Teams, Zoom, Google Meet, and OBS Studio.
- HDMI 2.0 Local Monitoring Output – Dedicated HDMI 2.0 output up to 4K@60Hz for real-time confidence monitoring of switched or mixed content.
- Integrated Audio Mixing Architecture – Audio embedding, extraction, and mixing across HDMI, USB, and analog interfaces, configured through the Web GUI.
- Web GUI & RS-232 Control System – Manage source switching, layouts, and audio via Web GUI, Telnet, RS-232, LAN, or front-panel buttons.
| Specification | Details |
|---|---|
| Product Type | USB & HDMI Source Switcher and Mixer |
| HDMI Input | 1 x HDMI 19-Pin Female Connector |
| HDMI Standard | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| USB 3.0 Input | 1 x USB 3.0 Type-A |
| USB 2.0 Input | 1 x USB 2.0 Type-A |
| Front USB Interfaces | USB 2.0 Type-A x1, USB-C x1 |
| HDMI Input Resolution | 1920×1080@60Hz, 1280×720@60Hz |
| USB Input Resolution | 1920×1080@30Hz, 1280×720@30Hz |
| Source Switching | Fast Seamless Source Switching |
| Video Mixing | Multi-Source Video Mixing |
| Layout Modes | Picture-in-Picture, Side-by-Side, Big & Small |
| HDMI Output | 1 x HDMI 19-Pin Female Connector |
| HDMI Output Standard | HDMI 1.4 / HDMI 2.0 |
| HDMI HDCP | HDCP 1.4 / HDCP 2.2 |
| HDMI Output Resolution | 3840 × 2160@60Hz |
| USB-C Output | Type-C UVC/UAC Output |
| USB-C Resolution | 1920×1080@30Hz |
| Audio Input | HDMI, USB, Analog Audio |
| Audio Output | HDMI, USB, Analog Audio Jack |
| Audio Mixer | Web-Based Audio Mixing |
| LAN Interface | RJ45 Gigabit Ethernet |
| PoE Support | Optional IEEE 802.3af |
| Control Methods | Web GUI, Telnet, RS-232, Front Keys |
| RS-232 Interface | 3.5mm Phoenix Terminal |
| USB Protocol | UVC & UAC Compatible |
| Overlay Features | Logo & Text Overlay (Future Firmware Support) |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | 0°C to +60°C |
| Humidity | 20%-85% RH Non-Condensing |
| Dimensions | 180mm × 95mm × 18mm |
| DC Input | 12V DC |
| Power Consumption | 15W Max |
| Adapter Input | AC100-240V 50/60Hz |
