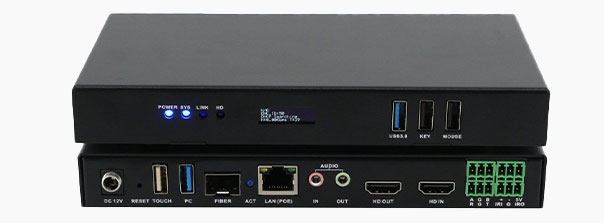

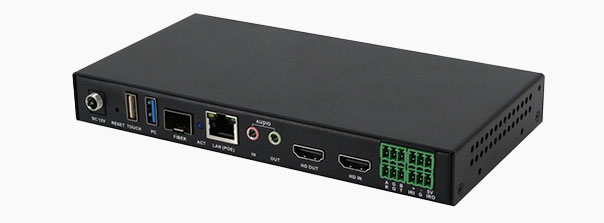

4K60 HDMI Over IP Transceiver
with Advanced Control
The AVNX-4K-35-TR is a high-performance 4K60 AV over IP transceiver that functions
as both encoder and decoder. It supports dual audio I/O, five USB ports for KVM and
touch control, and full integration via RS232, RS485, relay, and IR.
Designed for long-distance transmission (150m CAT6 / 2km fiber), it features PoE/DC
power and an LCD for quick setup. With no server required and fail-safe architecture,
it’s ideal for mission-critical AV environments like control rooms, smart campuses, and
command centers.
- 4K60 AV over IP transceiver (encoder & decoder in one)
- Supports 3840×2160 @ 60Hz 4:4:4 with ultra-low latency
- Works over CAT6 (150m) or fiber (2km) for long-distance transmission
- No central server needed — fail-safe distributed architecture
- 5x USB ports for KVM, USB 2.0, touch, and host control
- Dual 3.5mm audio in/out with embedding & de-embedding
- RS232, RS485, Relay & bi-directional IR for system integration
- Real-time input/output preview with seamless source switching
- Video wall support with up to 9-window configurations
- Front LCD displays IP, ID, and device mode for easy setup
- Supports PoE and DC power input
- Custom control via Windows software and flexible UI options
| Specification | Details |
|---|---|
|
Video Input |
1 x HDMI In + 1 x HDMI Loop-Out |
|
Video Output |
1 x HDMI Out
|
|
Input Resolution |
Up to 3840 x 2160 @ 60Hz (4:4:4) |
|
Output Resolution |
Up to 3840 x 2160 @ 60Hz |
|
Audio Input |
1 x 3.5mm Stereo |
|
Audio Output |
1 x 3.5mm Stereo |
|
Latency |
80–120 ms |
|
Control Ports |
RS232, RS485, Relay, Bi-Directional IR |
|
IP Ports |
1 x RJ45 LAN, 1 x Fiber |
|
Poe |
IEEE 802.3af Standard Supported |
|
Usb |
5 x USB (USB3.0, KM, Touch, Host, USB2.0) |
|
Power Consumption |
<10W |
|
Product Dimension |
217mm x 193mm x 25mm |
|
Weight |
800 g |
